Meet the ASTRA™ 1x1 Soft Bi-Color

With close attention paid to every detail, years of experience and customer feedback have given birth to the next generation soft panel.

Soft LED panels in
a better light

Soft LED panels in a better light

A soft light alternative that mimics the effect of a softbox in a compact, portable design.
Impressive light output that rates among the highest of soft LED panel.
It’s higher intensity illuminates a wider area, allowing the panel to compete with strong exterior light sources or illuminate a large area effectively with just a single fixture

Modern fixture design

  1. Easily identifiable and ergonomic manual controls for dimming, color, and power status
  2. Aluminum I-beam core construction that provides maximum durability and superior thermal management
  3. Aluminum accessory mounting points and lens/filter rails
  4. End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
  5. Durable, industry standard 3-pin XLR locking power connector

Flexible, modular concept

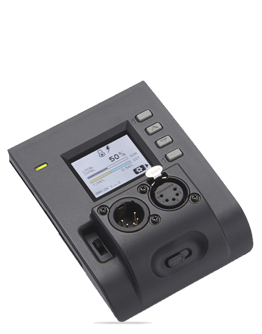

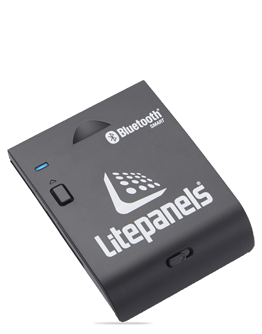

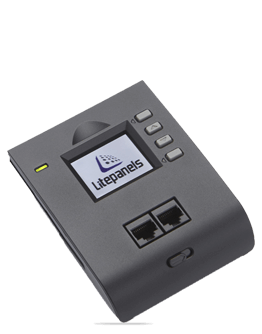

  1. Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX or Bluetooth

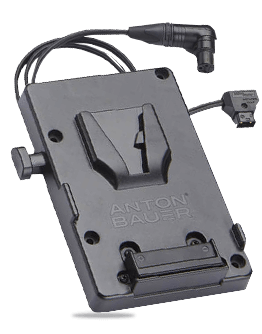

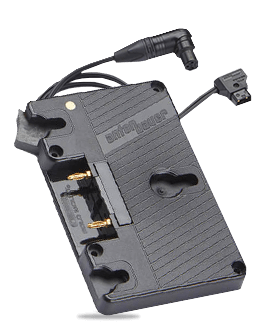

  2. Optional yoke mounted Gold Mount® or V-Mount battery plates
  3. Field replaceable fan module and external power supply

Custom curved yoke design

  1. Wide, unobstructed tilt range
  2. Yoke mounted power supply and optional battery plates with dual integrated cable guides
  3. Removable TVMP connector for flexible mounting options
  4. Two alternate 1⁄4-20 mounting points

Technical Specifications

Product Code935-5001

This higher intensity results in a longer throw and illuminates a wider area, allowing the panel to compete with strong exterior light sources or illuminate a large area effectively with just a single fixture.

Astra Features

Color Temperature


Power Requirements



18.5” x 16.3” x 5.3”
(46.9cm x 41.3cm x 13.5cm)

Maximum Power Draw



7.6lbs / 3.4kg

International AC Power Supply

24VDC via AC adapter 100-240 VAC DMX via Optional Communications Module (RJ45 or 5-Pin XLR) Wireless control via Bluetooth Communications Module


Output is brighter than
traditional LED panels

High performance LEDs with Soft diffusion panel

Ultra-smooth dimming

No noticeable color shift throughout the entire range

Flicker-free at any frame rate or shutter angle

Superior color reproduction

High color rendition (CRI)

Adjustable (daylight to tungsten), accurate color temperatures

Efficient thermal management with user selectable dual cooling modes

Completely silent passive cooling mode

Ultra-quiet active cooling mode with double light output

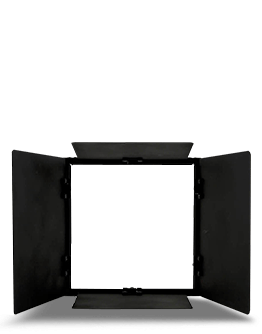

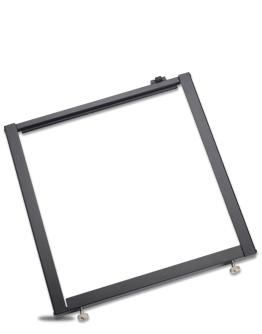

*Astra 1x1 Soft Bi-color Shown with Optional Adapter frame and 4-way barndoor Accessory.

Use the buttons above to see the photometrics of Astra 1x1 Soft Bi-Color in Footcandles and LUX and switch between Daylight or Tungsten mode. The Astra Soft Bi-Color has great output providing soft wrap around light with an even field and nice fall off with a comparative output to a 2K tungsten soft light or to a 575 HMI.

Distance5 ft / 1.5 m10 ft / 3 m15 ft / 4.5 m

*Preliminary specifications. Specifications subject to change without notice.
